MC1000 Automatic Colony Counter
Brand: FSTest
CatNO: 51000
Application: For automatically, rapidly, and accurately enumerate microbial colonies on culture count plates.

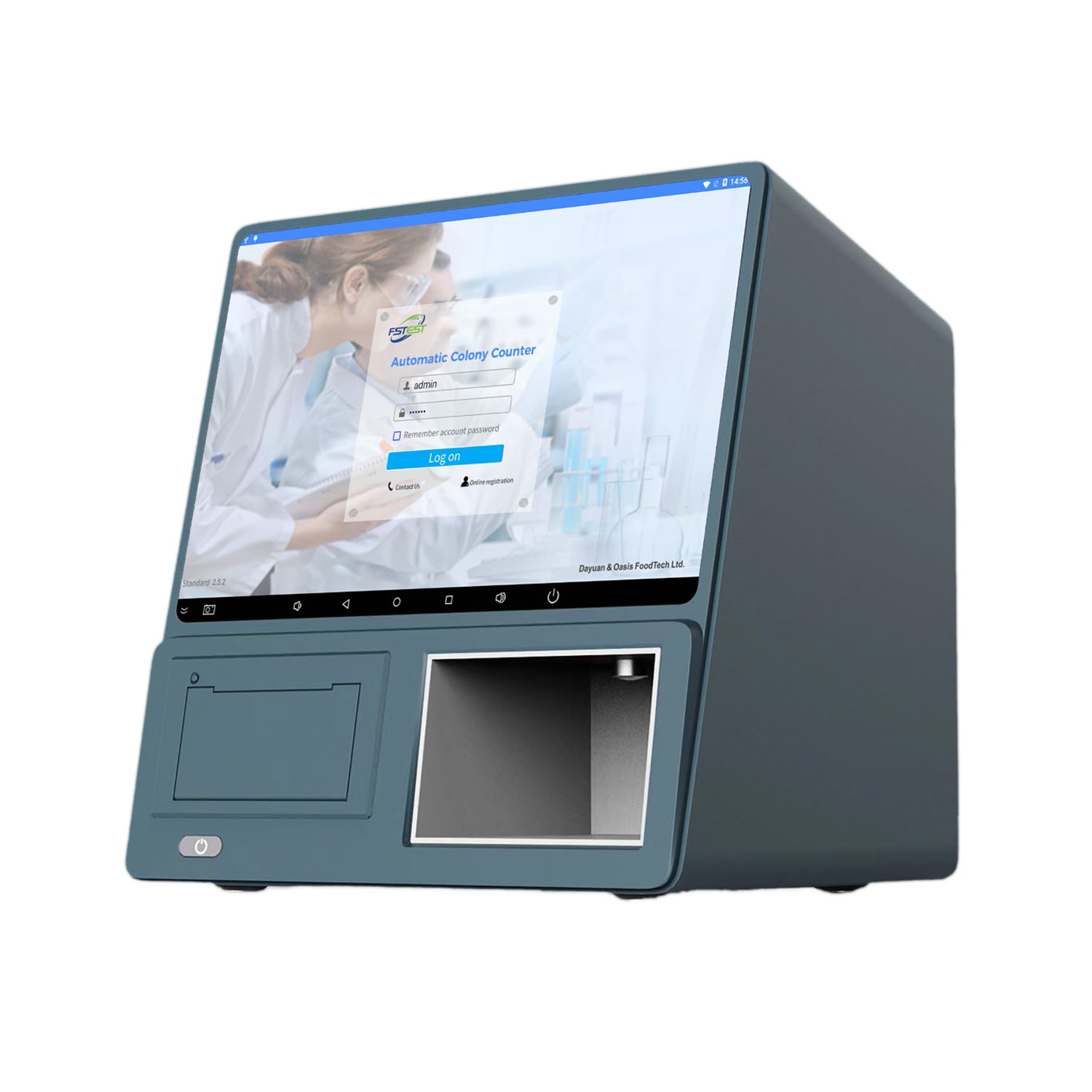

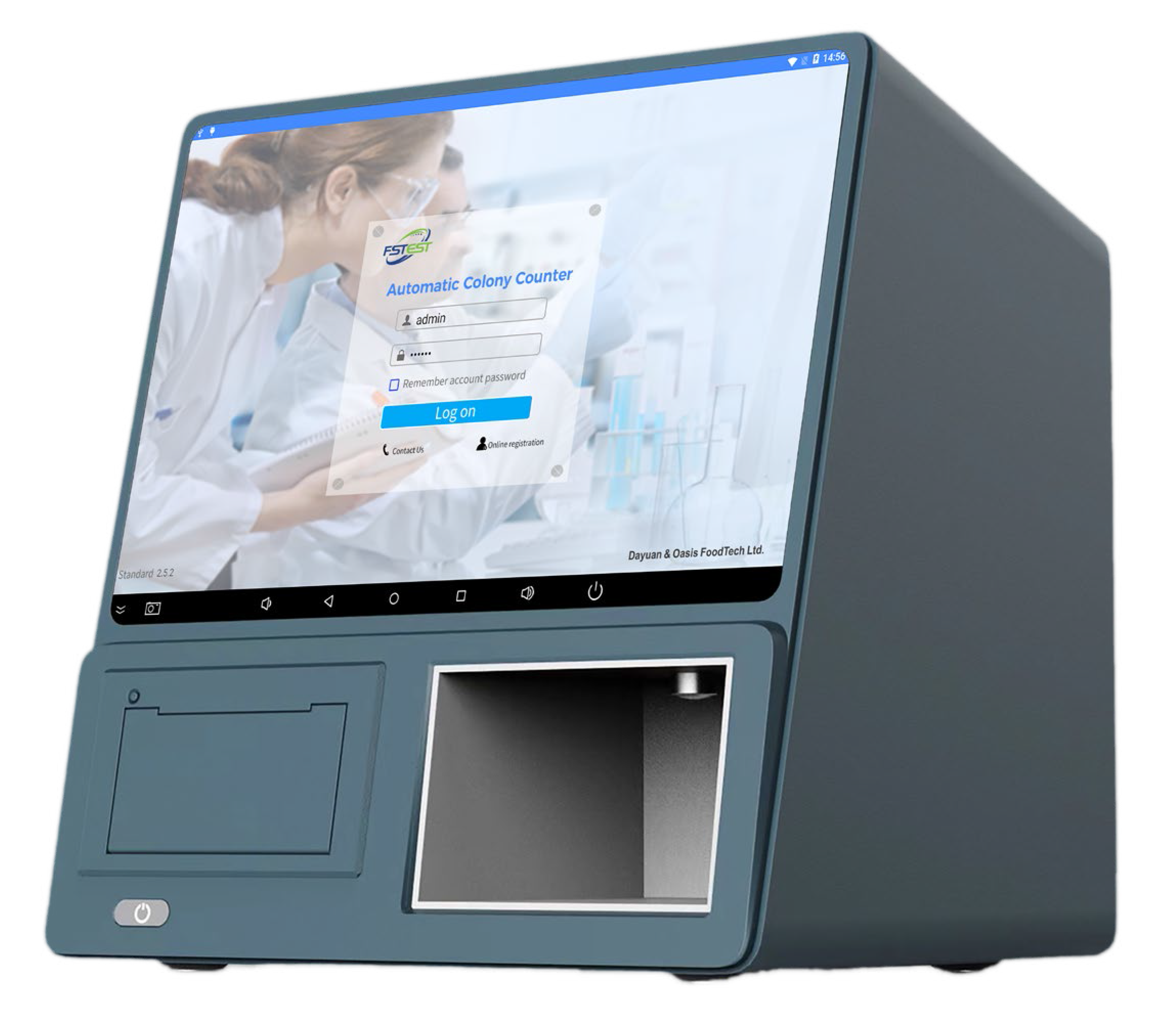

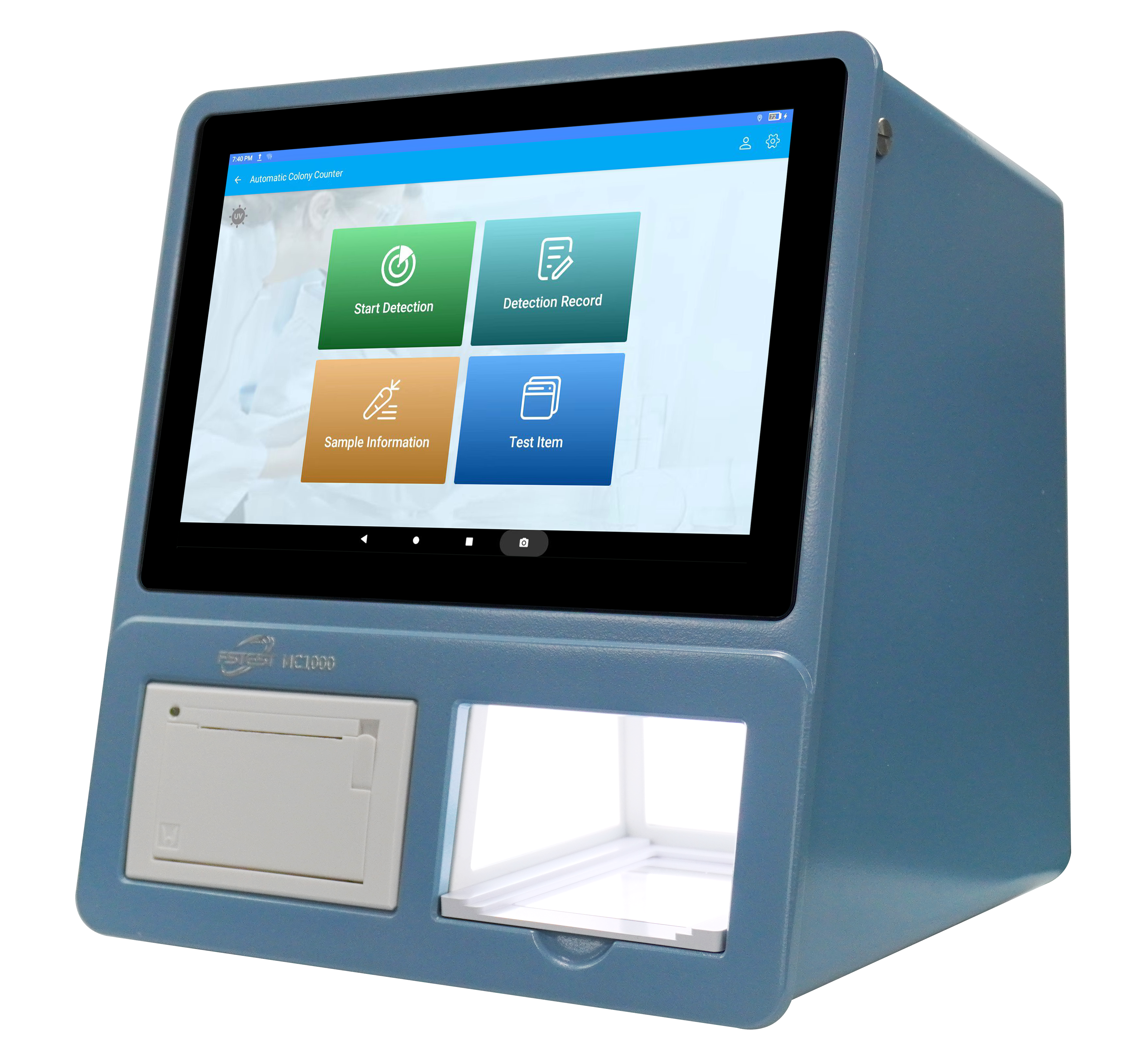

MC1000 Automatic Colony Counter
MC1000 Automatic Colony Counter
MC1000 Automatic Colony Counter
MC1000 Automatic Colony Counter

MC1000 Automatic Colony Counter

Digital Imaging & High-Throughput Microbial Plate Enumeration System
LAB AUTOMATION INSTRUMENT
       Catalog No.: 51000 | Brand: FSTest
≤ 3 secs
Ultra-Fast Readout
13 MP Camera
0.1 mm Resolution
≤ 5% Error
Counting Accuracy
CE / RoHS
Certified Compliance
1. Product Overview

The FSTest MC1000 Automatic Colony Counter represents a technological leap forward in automated microbiology testing. Integrating a sophisticated colony detection module, digital data management, and wireless networking into a single compact smart system, it utilizes advanced digital image processing algorithms to automatically, rapidly, and accurately enumerate microbial colonies on culture count plates.

By replacing tedious and subjective manual visual counting, the MC1000 delivers completed counts in as short as 3 seconds with an error rate of ≤ 5%, significantly elevating testing throughput and result reproducibility. Widely applicable to market regulatory authorities, customs entry-exit inspection labs, food and beverage manufacturing QA, and research institutions, it supports automated counting for Aerobic Count Plates, Coliforms/E. coli, Staphylococcus aureus, Enterococcus, and other standard microbial plates.

2. Key Benefits
  • High-Resolution Digital Imaging (13 Megapixels): Houses an industrial CMOS optical sensor (≤ 4224×3136) capable of resolving minute bacterial micro-colonies down to 0.1 mm in diameter.

  • Rapid 3-Second Automated Counting: Completes high-density image capture, pattern segmentation, dynamic thresholding, and enumeration within 3 seconds, eliminating laboratory reporting bottlenecks.

  • Advanced 10-Color Multi-Chromatic Differentiation: Adjustable discrete RGB LED illumination paired with multi-color segmentation algorithms allows separate, simultaneous counting of up to 10 distinct colony colors on a single plate (e.g., dual-chromogenic ECC plates).

  • Built-in Dual-Wavelength UV Chamber Disinfection: Integrates dual-wavelength ultraviolet emitters (276 nm + 393 nm) inside the counting chamber to prevent cross-contamination between consecutive batches.

  • Standalone All-in-One Operation: Powered by an onboard Android 11 operating system with HD capacitive touchscreen, requiring no mandatory external PC host.

  • Complete Data Traceability & Instant Printing: Features a built-in thermal printer for instant benchtop result slips, generates standardized audit-ready PDF reports, and supports WiFi/RJ45 cloud synchronization with LIMS platforms.

3. Technical Specifications & Optical Performance
Product NameMC1000 Automatic Colony Counter
Catalog Number51000
Camera Resolution≤ 4224 × 3136 (13 Megapixels) industrial CMOS
Analysis Speed & AccuracyCounting time: ≤ 3 seconds; Counting error: ≤ 5%; Retest stability: ≥ 96%
Minimum Colony Resolution0.1 mm
Illumination SystemDiscrete high-intensity RGB LED cold light source (software-controlled adjustable spectrum)
Color DifferentiationUp to 10 distinct colony colors counted and classified simultaneously
Integrated DisinfectionBuilt-in dual-wavelength UV decontamination lamp (276 nm + 393 nm)
System ArchitectureAndroid 11 OS | 2 GB RAM | 32 GB Storage (MicroSD expandable)
Ports & Connectivity2× USB 3.0, 2× USB 2.0 (Type-A), 1× USB 2.0 (Type-B), HDMI, RJ45 Ethernet, WiFi, Bluetooth
Onboard Output & PowerBuilt-in high-speed thermal printer; External AC Adapter (DC 12V / 5A)
Supported Microbial Testing Items & Count Plate Formats
Detection Target ProgramApplicable Media / Plate FormatsColor Segmentation Mode
Total Aerobic Count (TAC)FSTest Aerobic Count Plates / Standard Agar DishesRed TTC indicator recognition
Coliforms & E. coli (Dual-Target)FSTest Coliform & E. coli (ECC) Count PlatesDual-color (Blue-green vs. Purple)
Staphylococcus aureusSelective Chromogenic Count Plates / Baird-ParkerTarget halo & center colony profiling
Enterococcus, Salmonella, Bacillus cereusDry-film plates & circular/rectangular culture dishesMulti-wavelength RGB color sorting
4. Applicable Sample Types

Tailored for rigorous microbial testing across primary industrial and regulatory sectors:

Food Processing & Beverage Manufacturing Plants    Dairy Factories, Slaughterhouses & Meat Packers    Government Market Supervision & Food Safety Authorities    Customs Inspection & Quarantine Testing Laboratories    Commercial Third-Party Testing Agencies & Universities
5. Test Procedure
STEP 1
Power & Setup
Connect DC 12V adapter and power on. Select testing program (e.g., Aerobic, ECC, Staph) on the HD touchscreen and adjust RGB LED lighting parameters.
STEP 2
Plate Loading
Open tray and position the incubated count plate or petri dish onto the center of the loading stage. Push tray smoothly into the imaging dark chamber.
STEP 3
3-Sec Auto Count
Tap "Count". High-resolution image is captured instantly; intelligent segmentation algorithms filter noise and compute colony counts within 3 seconds.
STEP 4
Print & Export
Review high-res colony image on screen. Print receipt via built-in thermal printer, export audit-compliant PDF reports, or upload data to LIMS via WiFi.
Data Traceability & Regulatory Audit Guide:
  • Digital Image Archiving: Every completed test automatically archives high-resolution uncompressed plate images, counting masks, and timestamps into the 32 GB local storage.

  • Manual Correction Verification: Allows operators to add, delete, or re-classify colonies on screen via touch/mouse; all manual edits are logged with user audit trails for ISO 17025 compliance.

  • Chamber Disinfection: Activate the dual-wavelength UV decontamination lamp (276 nm + 393 nm) after high-load testing runs to maintain a clean imaging chamber.

6. Performance & Crucial Operational Controls

Adhere to standard instrumental handling protocols to ensure optimal counting reliability:

  • Level Bench Placement: Ensure the instrument is installed on a vibration-free, level laboratory bench away from strong electromagnetic interference or direct sunlight.

  • Optical Cleanliness: Keep the internal stage and optical viewing window dust-free. Clean exclusively using non-abrasive optical wipes moistened with 75% ethanol.

  • UV Interlock Safety: Do not attempt to override the door safety interlock during UV disinfection cycles to avoid skin and eye exposure.

  • Power Quality: Use exclusively the provided dedicated DC 12V/5A power supply adapter to ensure stable electrical performance.

7. Included Components & Auxiliary Equipment
  • Instrument Package Included: 1× MC1000 Automatic Colony Counter Main Unit, 1× DC 12V/5A Power Supply Adapter & Cable, Thermal Printer Paper Roll, Sample Loading Tray, USB Mouse, User Manual, Calibration Certificate.

  • Compatible Consumables (Ordered Separately): FSTest Aerobic Count Plates, Coliform & E. coli (ECC) Plates, Staph Count Plates, standard Petri dishes, and replacement thermal paper rolls.

Request Demonstration & Purchasing Information
Upgrade your microbiology testing efficiency with the FSTest MC1000 Automatic Colony Counter. On-site instrument demonstrations, distributor wholesale pricing, and technical consultations are available upon request.

     Email: service@fstestcorp.com | Website: www.fstestcorp.com
Certification & Validation
